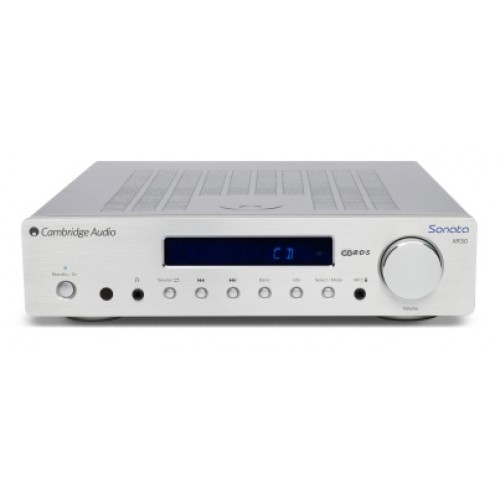

The AR30 FM/AM integrated 2.1 receiver proves Sonata’s beauty is way more than skin deep.

Using a substantial toroidal transformer and fully discrete amplification, this svelte receiver offers genuine hi-fi performance and an impressive 40 Watts per channel (8 Ohms) of controlled, refined power.


Complete iPod integration
Sonata’s custom-designed iPod dock can vastly improve your digital music thanks to Cambridge Audio’s quasi-differential noise cancelling technology.
Drawing every last drop of detail from your music collection, the neat yet sturdy dock accommodates any iPod and the supplied Navigator remote offers armchair control of your iPod, CDs, radio and amp controls. Other MP3 players can also be connected via the front connection and accessed using a dedicated ‘MP3’ source selector.
The on-board high sensitivity FM/AM tuners include twenty presets for instant access radio to stations. In addition, the North American version of Sonata is SIRIUS Ready. Simply purchase a SIRIUS tuner device in order to activate this amazing service.
Not only does Sonata perform superbly, it looks absolutely fantastic thanks to a stunning high-end brushed aluminium finish and is available in either black or silver.
And under the hood, micro surface-mount circuit technology further improves performance by reducing signal paths to the absolute minimum. This produces a highly detailed and rich soundstage – ideal for any room in the home and is perfectly developed to handle music and movies with aplomb.

Specifications

​Amplifier
Power output - 40W RMS into 8 Ohms
THD - <0.05% 20Hz-20kHz @ 80% max power <0.009% @ 1kHz 10W
Frequency response - 10Hz – 50kHz +/- 1dB
S/N ratio (ref 1w) - >80dB ‘A’ weighted
Line input impedances - 47k Ohms (CD, DVD, Aux and MP3 inputs)
Tone controls - +/-12dB @ 100Hz and 10kHz (shelving)
Headphone output - 3.5mm stereo mini jack

​Tuner
​Bands - AM (530-1710kHz FM/VHF (87.5MHz to 108MHz)
Aerial inputs - FM: 75 ohms, Coaxial. AM 300 ohms wire loop/single wire
Signal to noise - 60dB typical (FM)
Distortion - <0.2% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)

​DD30 iPod dock
​THD - <0.009% @ 1kHz
S/N ratio - <-80dB re 2V output

​General
​Trigger outputs - 3 x 12V @ 30mA, 3.5mm jack, Tip positive Corresponding to CD, DVD and Aux inputs
Power supply - AR30-EU : 230V AC~50Hz (UK /EU) AR30-CU : 115V AC~60Hz (CU/US)
Max. power consumption - 300W
Standby power consumption - <3W
Dimensions (W x H x D) - 270 x 67 x 285mm
Weight - 4.0Kg (8.6lbs)

Write a review

Note: HTML is not translated!
    Bad           Good

Cambridge Audio Sonata AR30 receiver

  • Brand: Cambridge Audio
  • Product Code: Cambridge Audio Sonata AR30 receiver - BLACK ONLY
  • Availability: In Stock
  • $699.00
